Open Metal Detector
For detecting and separating metal impurities from free fall bulk materials.

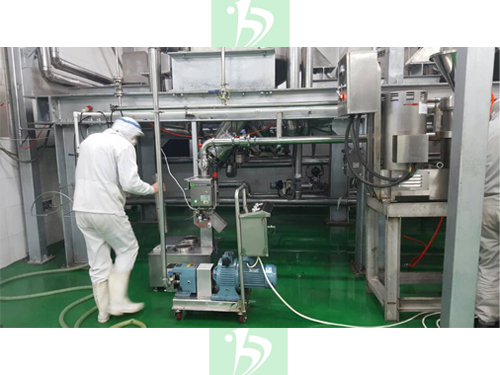

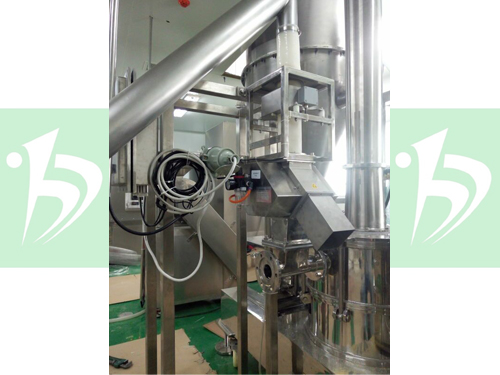

Case Video
Work Simulation
Product Introduction
Essential Information
Quality: This machine adopts German technology. The main control board is imported from Germany so as to provide high
sensitivity and high stability.
Application: Detect magnetic and non-magnetic metal impurities from free fall bulk materials guarantee product quality.
sensitivity and high stability.
Application: Detect magnetic and non-magnetic me
Product Advantages/ Performance Characteristics
Design: Special design can effectively avoid the interference of vibration noise and product effect. High stability
round outlet for easy connection.Reliable sealing.
Design: Ease of installation with only four screws. Impact structure for easy installation. Avoid contamination caused
by product accumulation clog.
Appearance: Machine housing and product direct contact parts are made of stainless steel 304.
Size: Opening size can be customized to suit any needs.
Production: Quick rejection for minimum material loss do not interfere normal production process.
Materials: Loose dry materials (powder particles etc.) with well flow ability.
Temperature: Suitable detect material temperature range -10--80℃. Can use temperature resistant parts for special products.
Reject: Automatic flap rejection of metal impurities. Alarm function is optional.
System: Power failure protection. Automatic counter record reject times.
Precision: Maximum Fe0.5mm SUS0.8 mm Non Fe0.55mm (can customize higher precision)
Configuration: SMC air cylinder MAC solenoid valve SNS air filter etc.
Scheme: Compliant with food grade requirements.
Level: IP54.
round outlet for easy connection.Reliable sealing.
Design: Ease of installation with only four screws. Impact structure for easy installation. Avoid contamination caused
by product accumulation clog.
Appearance: Machine housing and product direct contact parts are made of stainless steel 304.
Size: Opening size can be customized to suit any needs.
Production: Quick rejection for minimum material loss do not interfere normal production process.
Materials: Loose dry materials (powder particles etc.) with well flow ability.
Temperature: Suitable detect material temperature range -10--80℃. Can use temperature resistant parts for special products.
Reject: Automatic flap rejection of me
System: Power failure protection. Automatic counter record reject times.
Precision: Maximum Fe0.5mm SUS0.8 mm Non Fe0.55mm (can customize higher precision)
Configuration: SMC air cylinder MAC solenoid valve SNS air filter etc.
Scheme: Compliant with food grade requirements.
Level: IP54.
Special Description
Application range: plastic chemical food industries
Technical Parameter
Model |
Passage Size (mm) |
Detect Precision(mm) | Dimensions(mm) |
Max Throughput (L/H) |
||
Fe | SUS | No Fe | ||||
FF30 | 26 | 0.4 | 0.7 | 0.45 | 320*340*370 | 400 |
FF50 | 45 | 0.5 | 0.8 | 0.55 | 2000 | |
FF80 | 80 | 0.75 | 1.2 | 0.8 | 8000 | |
FF100 | 102 | 0.8 | 1.4 | 0.85 | 340*350*473 | 12000 |
FF120 | 116 | 1 | 1.5 | 1.1 | 16000 | |
FF150 | 154.6 | 1.5 | 2 | 1.6 | 460*436*706 | 25000 |
FF200 | 194 | 1.8 | 2.2 | 2.1 | 520*600*920 | 44000 |
FF250 | 240 | 2.5 | 2.9 | 2.8 | 68000 |
Quality Assurance
Function: Detect magnetic and non-magnetic small metal impurities even the metal is enclosed in the product.
Protection: Protect downstream equipments in plastic industry avoid unnecessary production halts.
Improve: Always improve the quality of products.
Provide: Inspection reports.
Optimization: Optimize production process and improve efficiency.
Benefits: Avoid complaints or product recalls improve your corporate image.
Protection: Protect downstream equipments in plastic industry avoid unnecessary production halts.
Improve: Always improve the quality of products.
Provide: Inspection reports.
Optimization: Optimize production process and improve efficiency.
Benefits: Avoid complaints or product recalls improve your corporate image.
