Conveyor Metal Detector
For detecting metal impurities from bulk materials or after packaging. (0-800kHz variable frequency)

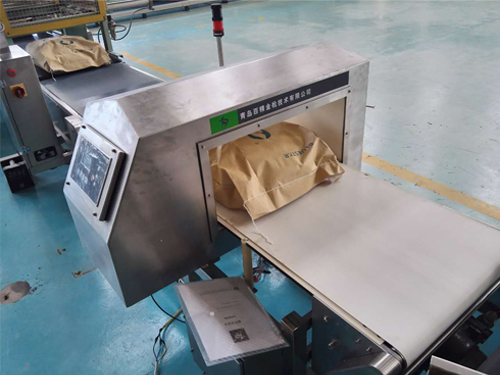

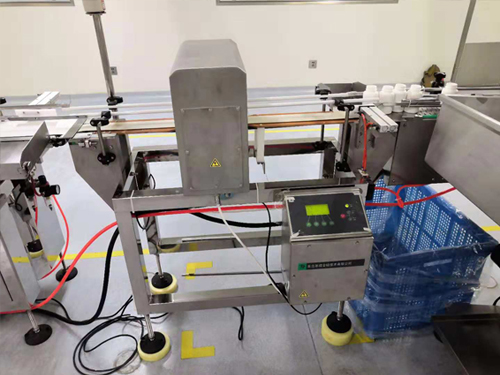

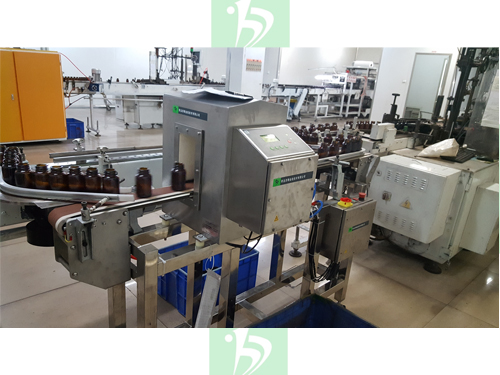

Case Video
Work Simulation
Product Introduction
Essential Information
Quality: This machine adopts German technology. The main control board is imported from Germany so as to provide high
accuracy high sensitivity and high stability.
Application: The conveyor metal detector system detects magnetic and non-magnetic small metal impurities even the metal is
enclosed in the product. It is in-line solution without stopping the normal production process while protect product quality.
Site: This machine can be installed in the conveyor line or operator manually put products on the conveyor belt. The machine
stops when detecting metal or rejects them in-line.
Frequency: 0-800kHz high detecting frequency.
accuracy high sensitivity and high stability.
Application: The conveyor me
enclosed in the product. It is in-line solution without stopping the normal production process while protect product quality.
Site: This machine can be installed in the conveyor line or operator manually put products on the conveyor belt. The machine
stops when detecting me
Frequency: 0-800kHz high detecting frequency.
Product Advantages/ Performance Characteristics
Structure: Robust stainless steel detect head (one time pouring) and conveyor frame which ensures machine stability
and service life. Minimum machine body and detect head non metal area. Can minimize conveyor length for
easy installation and integration.
Precision: Excellent system performance machine can effectively work under the interference of vibration noise and product
effect. Machine with optimal sensitivity and adjustable detect precision. 100% product is detected during conveying.
Cleaning: Hygiene design. Easy dismantling and cleaning. Whole machine is open structure and no gaps. Detect head do
not accumulate dust. All product contact parts are food grade.
System: It has the functions of product learning and effect restraint which can be used to detect different kinds of products.
With 200 storages of different products the machine can change its product parameters in no time. It also has storage
functions of 1500 incidents (delete memory) built-in cull clock multi-program memory log in user level management
control and power failure protection.
Safety: In case of fault machine gives alarm immediately. After setting time running metal detector system gives alarm to
require a performance test by metal testing balls to confirm the functionality of the machine.
Operation: The machine can be operated in English/Chinese language through intuitive access multi-program memory.
Size: Detect head opening size: 50*50mm-1500*800mm. The size can be customized.
Levels: Protection Degrees: IP65 which can meet the requirements of HACCP certification.
Power: The whole machine power consumption is 023kw/H which is entirely energy saving.
Documentation: All the material certifications as well as IQ OQ PQSOP and FAT are supplied with.
and service life. Minimum machine body and detect head non me
easy installation and integration.
Precision: Excellent system performance machine can effectively work under the interference of vibration noise and product
effect. Machine with optimal sensitivity and adjustable detect precision. 100% product is detected during conveying.
Cleaning: Hygiene design. Easy dismantling and cleaning. Whole machine is open structure and no gaps. Detect head do
not accumulate dust. All product contact parts are food grade.
System: It has the functions of product learning and effect restraint which can be used to detect different kinds of products.
With 200 storages of different products the machine can change its product parameters in no time. It also has storage
functions of 1500 incidents (delete memory) built-in cull clock multi-program memory log in user level management
control and power failure protection.
Safety: In case of fault machine gives alarm immediately. After setting time running me
require a performance test by me
Operation: The machine can be operated in English/Chinese language through intuitive access multi-program memory.
Size: Detect head opening size: 50*50mm-1500*800mm. The size can be customized.
Levels: Protection Degrees: IP65 which can meet the requirements of HACCP certification.
Power: The whole machine power consumption is 023kw/H which is entirely energy saving.
Documentation: All the material certifications as well as IQ OQ PQSOP and FAT are supplied with.
Special Description
Application area: Pharmaceutical intermediate pharmaceutical packaging food additives fresh fish and meat chemical etc. hygiene industries.
Technical Parameter
Model |
Passage Size (effective) |
Detect Precision | Model |
Passage Size (effective) |
Detect Precision |
WMD200/100 | 200*70 | Fe 0.5mm SUS 0.7mm | WMD400/200 | 400*165 | Fe 0.9mm SUS 1.2mm |
WMD200/150 | 200*125 | Fe 0.6mm SUS 0.9mm | WMD500/150 | 500*115 | Fe 0.8mm SUS 1.0mm |
WMD300/150 | 300*125 | Fe 0.7mm SUS 0.9mm | WMD500/250 | 500*215 | Fe 1.1mm SUS 1.5mm |
WMD300/200 | 300*165 | Fe 0.8mm SUS 1.1mm | WMD600/200 | 600*165 | Fe 0.9mm SUS 1.2mm |
WMD400/150 | 400*115 | Fe 0.7mm SUS 1.0mm | WMD600/300 | 600*265 | Fe 1.2mm SUS 1.6mm |
1)Comply with national standards suitable for long time production application with stable performance.
2)Most advanced micro process control system with self learning function.
3)The system is suit for industrial environment with vibration hitting and static interference for detecting materials with water or me
4)Main control parts are imported. Control menu is simple operation with one-button operation mode with Chinese/English operation menu.
5)Process parameter requirements: sensitivity is adjustable reject time is adjustable within 0.05-60 seconds horizontal conveyor belt feed standard me
6)On the basis of normal detect precision machine maximum speed is 300 meters/min; minimum speed is 3 meters/min.
7)me
8)Machine uses inverter control motor.
9)Provide with me
Quality Assurance
Function: Detect magnetic and non-magnetic small metal impurities even the metal is enclosed in the product.
Improve: Leave the unqualified products in your workshop improve product quality.
Provide: Inspection reports.
Optimization: Optimize production process and improve efficiency.
Benefits: Avoid complaints or product recalls improve your corporate image.
Warranty: 12 months.
Improve: Leave the unqualified products in your workshop improve product quality.
Provide: Inspection reports.
Optimization: Optimize production process and improve efficiency.
Benefits: Avoid complaints or product recalls improve your corporate image.
Warranty: 12 months.
